Expanding Skate Wheel Conveyors
Technical Information

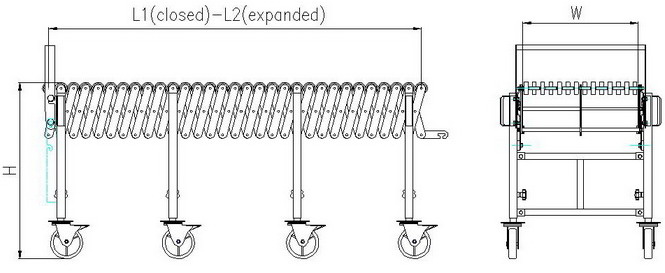

| L1 = Closed Length | W = Width |
| L2 = Expanded Length | H = Height |
Ratio Lengths = L1:L2 = 1:4
Length examples:
| Closed Length (L1) | Expanded Length (L2) |
| 1m | 4m (Pitch = 130mm) |
| 2m | 8m (Pitch = 130mm) |
| 3m | 12m (Pitch = 130mm) |
Standard Models
| Wheel Detail: | Ø49 Carbon Steel Wheel |
| Capacity: | 50kg/m (expanded) |
| Widths available: | 460mm (7 wheels / axle), 610mm (9 wheels/axle), 760mm (11 wheels/axle) |
| Height available: | 700mm to 1000mm (adjustable) |

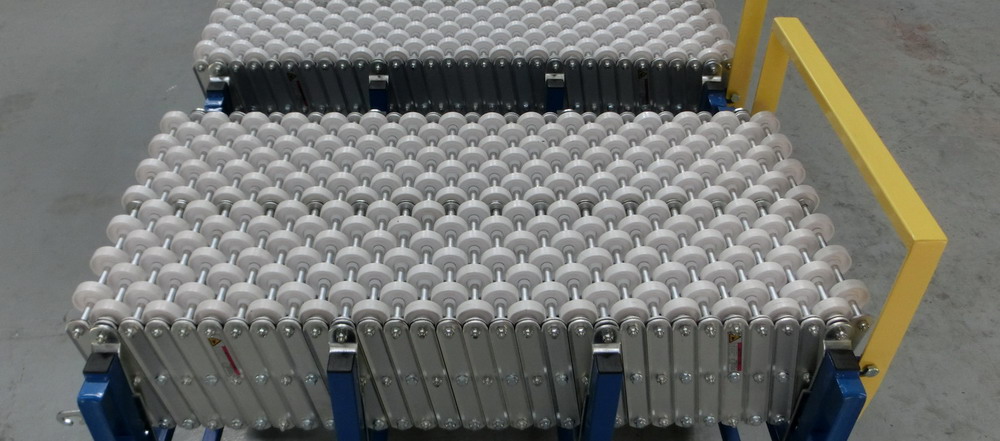

Side plates consists of either flat steel (powder coated) or ribbed aluminium plates.
Legs supports are mild steel (powder coated) square tube.
All castor wheels come with a brake.
Custom models are available on request.
|
